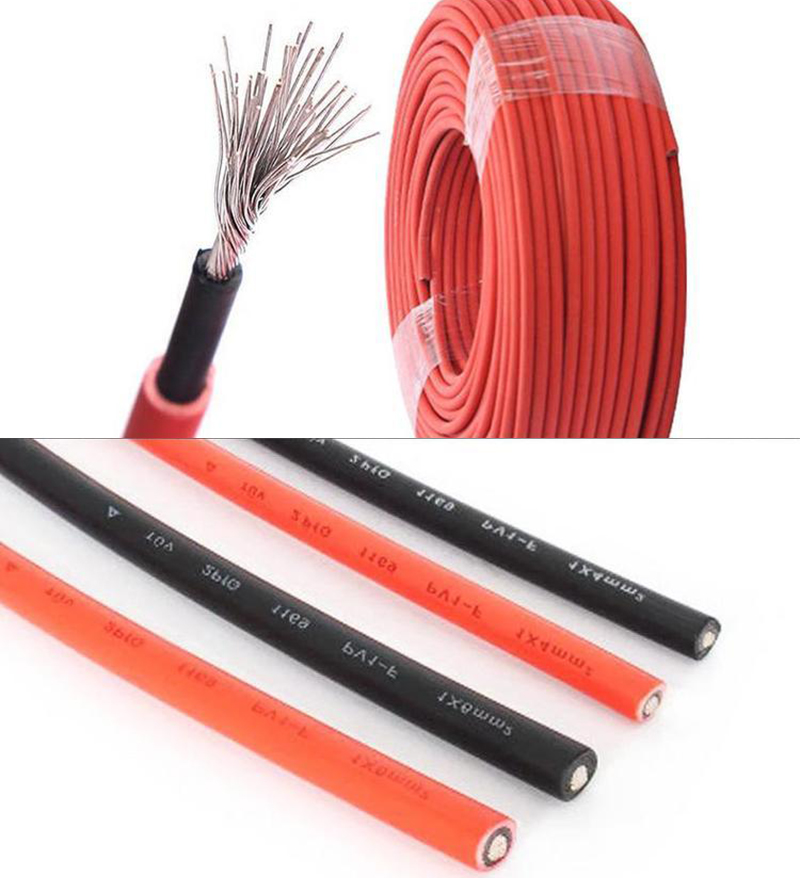

PV Cable-PV1-F
- UV Resistant
- Flame-Retardant
- High-Temperature Resistant Dual Insulation Protection
TUV Single Core Solar DC Cable
Solar Cable is used in photovoltaic power generation and solar system, interconnects solar panels and electrical components in the
photovoltaic system. The size from 1.5 mm2 to120mm2, suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant.
photovoltaic system. The size from 1.5 mm2 to120mm2, suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant.
| Construction | Conductor Structure | Conductor | Outer | Resistance Max. | Carring Capacity | Approx Weight |
| nxmm² | n/mm | mm | mm | Q/km | A | kg/km |
| 1x1.5 | 30/0.25±0.02 | 1.58 | 4.9 | 13.7 | 30 | 36 |
| 1x2.5 | 49/0.25±0.02 | 2 | 5.5 | 8.21 | 41 | 49 |
| 1x4 | 56/0.30±0.02 | 2.55 | 6.1 | 5.09 | 55 | 65 |
| 1x6 | 84/0.30±0.02 | 3.1 | 7.1 | 3.39 | 70 | 92 |
| 1x10 | 145/0.30±0.02 | 4.1 | 8.5 | 1.95 | 98 | 138 |
| 1x16 | 126/0.40±0.02 | 5.7 | 10 | 1.24 | 132 | 210 |
| 1x25 | 196/0.40±0.02 | 7.1 | 12 | 0.795 | 176 | 320 |
