Residential Solar System Kit
- One-stop solution from panel to power station
- High-quality service through the entire process
- Clean energy advisor of customers
Fanlee SOLAR is a vibrant and fast-growing international company and as a leader in the solar system& solar lighting industrial. Fanlee Solar is one of the earliest new-energy manufacturers, specialize in design&develop solar products and provide professional solar power system solutions.
We has finished research and development of solar power home system, All In One solar power system, wall mounting, stackable and standing LiFePO4 battery, WIFI solar inverter, Pay As You Go system, IOT LoRa control solar street light and master the core innovative technology of whole solar products.
Product Details
| Solar system for home | |||
| Parts | Description | Quantity | |
| 8kw | 16kw | ||
| mppt Controller Inverter | Model:JSD8KLNA | 1 PCS | 1PCS |
| Input：48VDC | |||
| AC Output:120V/240V 50-60Hz,8000W | |||
| Max Charge Current: 80A Waterproof Level: IP65 | |||
| Lifepo4 battery pack | Model:48V 200AH | 1PCS | 2PCS |
| Rated Voltage:51.2V | |||
| Rated Capacity: 200AH | |||
| Net Weight:86 KG | |||
| DOD depth: 100% | |||
| PV Panel | Model:VSMH550-36V -MH | 14PCS | 28PCS |
| Peak Power(Pmax):550V ; | |||
| Maximum Power Current(Imp):42.1VOpen Circuit Voltage(Voc)：50.10±3%； Rate Power：550W； Size：2279*1134*3mm | |||
| Weight:28.40kg | |||
| PV Panel Mounting | Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting | 1 Set | 1 Set |
| Bracket | |||
| Power Distribution Box | Customized,Including leakage circuit breaker, air-switch, by-pass switch etc | 1 Set | 1 Set |
| Cable | Model:PV-1*6mm2 | 40 M | 80 M |
| Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature:-40℃~90℃ | |||
| PV Waterproof Connector | Model:MC4 | 10 Pairs | 20 Pairs |
| Rated Voltage: 1000V DC | |||
| Rated Current: 30A | |||
| IP Rate: IP67 | |||

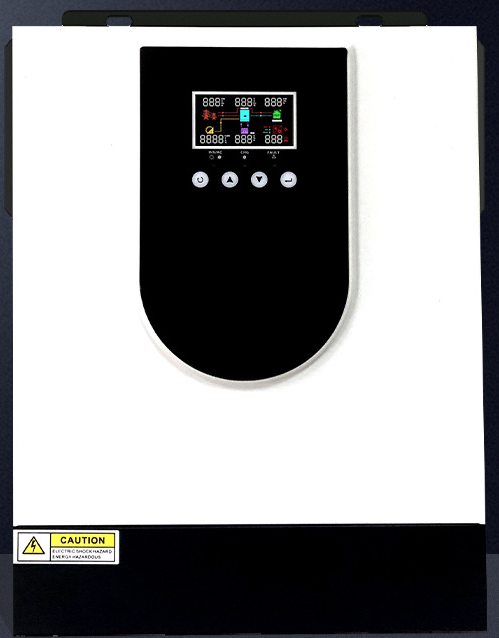

MPPT Controller Inverter
1. Pure sine wave inverter;
2. Built-in MPPT solar controller;
3. Configurable AC/Solar Charger priority via LCD setting;
4. Compatible to mains voltage or generator power
5. Auto restart while AC is recovering;
6. Overload/ Over temperature/ short circuit protection
7. Cold start function.
Lithium Ion Battery
1. Safety and Reliable
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 10kwh,
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app.

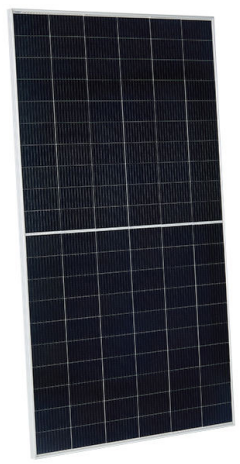

Solar Panels
1. 25 years Warranty
2. Highest conversion efficiency of 21%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust
PV Panel Monuting Bracket

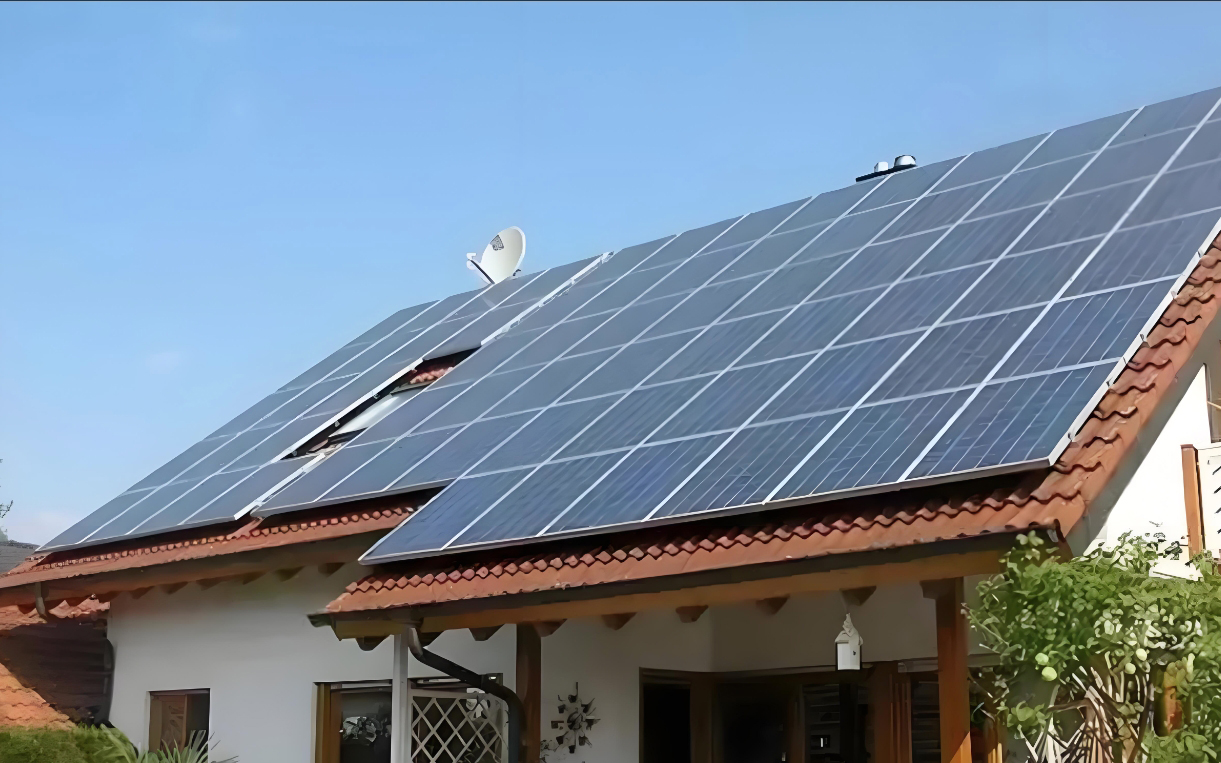

1. Residential Roof(Pitched Roof)
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system
