Tracking System

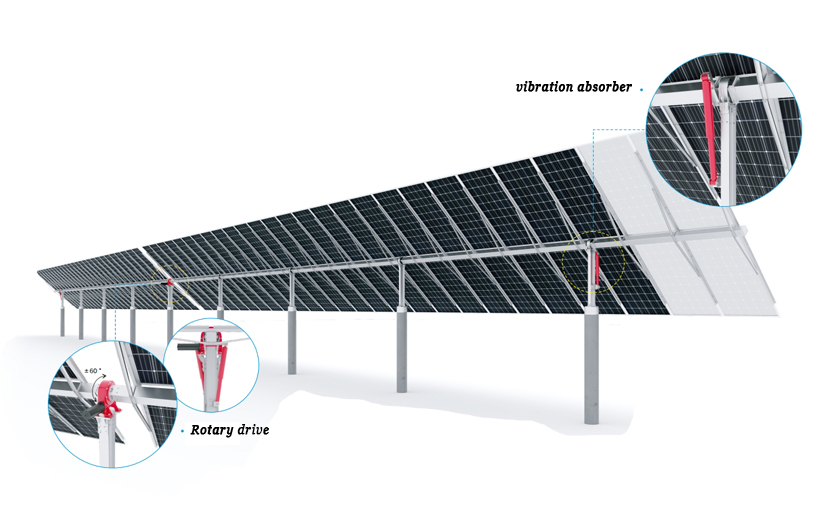

Rotary drive single axis independent tracking system

Driven by a rotary motor, it tracks sunlight in real-time and intelligently searches for light. Compared to traditional fixed brackets, its power generation can be increased by 10% -15%, making it suitable for large-scale power stations in multiple scenarios.

√The traditional square tube main beam design has stronger adaptability.

√Adopting fishbone purlins, it has higher strength, stronger stability, and is easy to install.

Product Advantage

√Oversized drive motor, intermediate rotation deceleration, maintaining left and right balance, and uniform force distribution.

√Equipped with shock absorbers on both sides, it effectively prevents system resonance and helps support and protect the spindle.

√Rotary drive system, with a tracking angle of up to 60 inches, to obtain more sunlight.

System Advantage

√String power supply, backup battery, safe and reliable

√Wireless communication, optimized layout, simple and efficient

√All day intelligent tracking to increase power generation

√Internet cloud data transmission, support 5G transmission, real-time monitoring, fast and efficient

-----------------------------------------------------------------------------

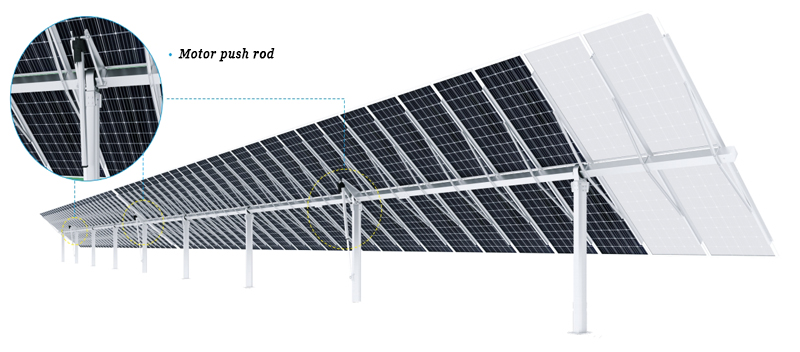

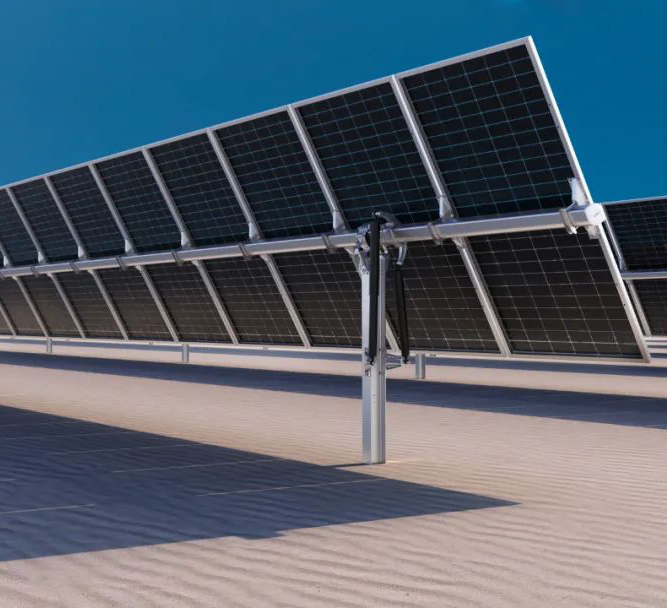

Multi push rod single axis independent tracking system

Adopting 3 push rods and synchronized driving through motor control, multiple support points are stable and reliable, providing a double-sided component optimization solution with no obstruction on the back and a double-sided+intelligent tracking mode, significantly increasing power generation.

Product Advantage

√3 simultaneous drives, with a tracking angle of up to 50 degrees“

√The push rod is located below the photovoltaic panel, which is rainproof and dustproof, and increases its service life.

√The motor is located above the push rod to prevent flooding

√High torque push rod ensures stable operation

System Advantage

√String power supply, backup battery, safe and reliable

√Wireless communication, optimized layout, simple and efficient

√All day intelligent tracking to increase power generation

√Internet cloud data transmission, support 5G transmission, real-time monitoring, fast and efficient

-----------------------------------------------------------------------------------------------------

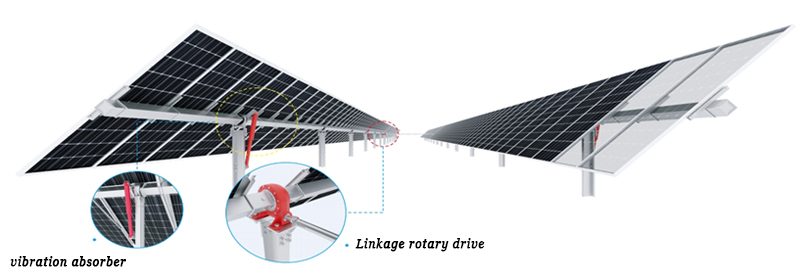

Rotary drive single axis linkage tracking system

Driven by a rotary linkage motor, the dual row is connected and driven simultaneously, resulting in higher strength and greater stability.

Cost reduction, energy consumption reduction, and outstanding cost-effectiveness.

Product Advantage

√Intermediate rotary drive, two measuring belts with shock absorption, enhanced damping to reduce resonance

√Rotary drive system, with a tracking angle of up to 60 degrees Celsius, to obtain more sunlight.

√The linkage shaft can be adjusted in a universal manner and is not affected by uneven heights.

√Single motor drive, significantly reducing costs

System Advantage

√String power supply, backup battery, safe and reliable

√Wireless communication, optimized layout, simple and efficient

√All day intelligent tracking, improve power generation, Internet cloud data transmission, support 5G transmission, real-time monitoring, fast and efficient
